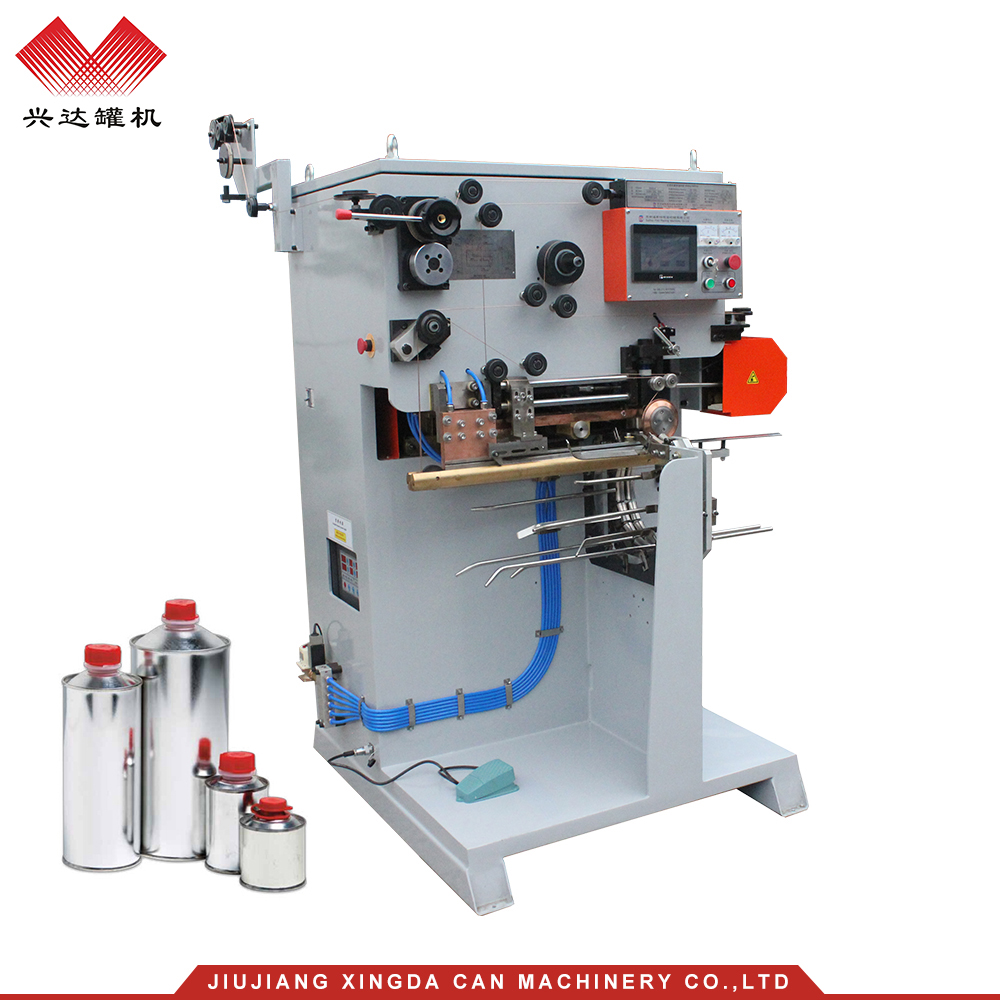

1. Usage
Seam welding for can body
2.Main technical Parameters
Input Power: 3N380V/50Hz 15KVA
Welding speed: no more than 12m/min
Production capacity: 20-50 PCS /min
Diameter range Diameter range: Φ 65 - Φ 300 mm
Height range: 70-400mm
Overlap quantity: 0.6-1.2mm
Thickness of material: 0.2-0.4mm
Copper T2 Copper wire: Φ Φ 1.5-1.7 mm
Cooling water: not less than 0.3MPa8 ~ 10L/min
Dimension: 1350*1300*1700mm
Net weight: 1300 KGS
